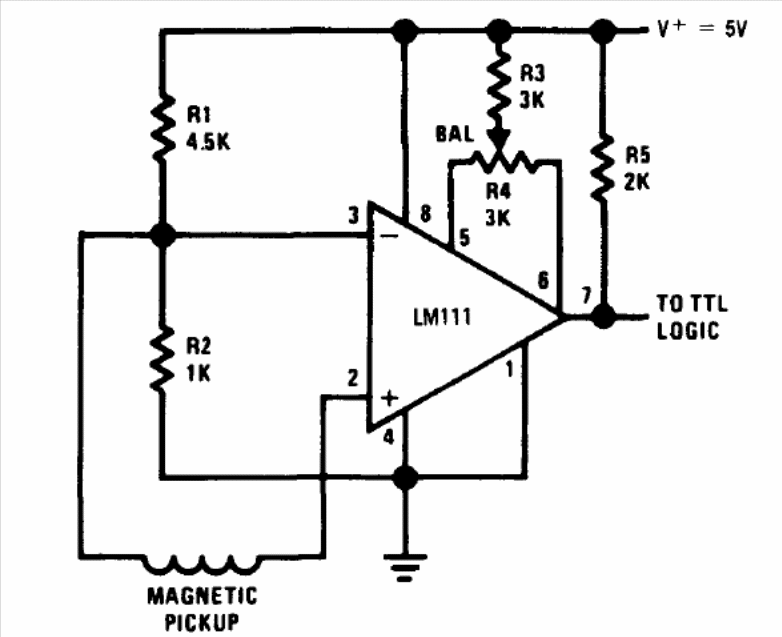

The circuit presented was found in the 1994 National Instruments Linear Applications Handbook and can be implemented with equivalent operational amplifiers. The power source is 5 V, and the output is compatible with TTL logic.
| Clique na imagem para ampliar |
