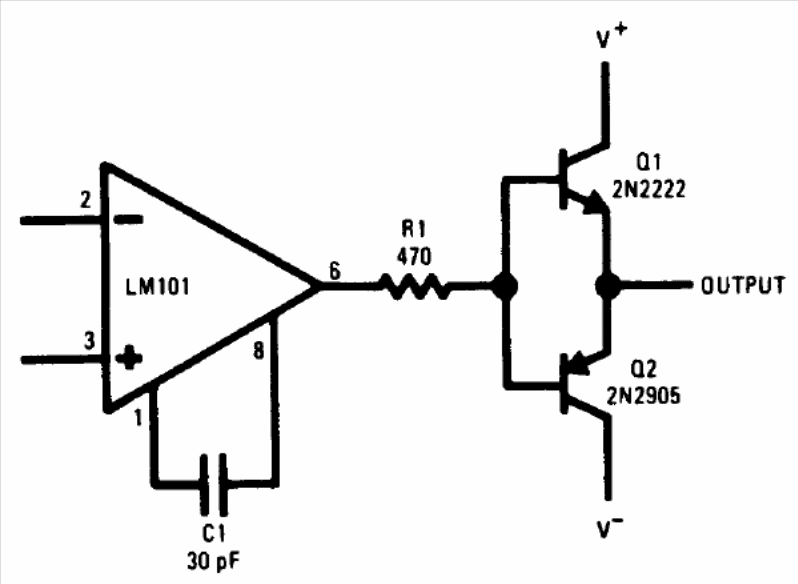

In the figure we have the way to increase the current capacity of an operational amplifier. The circuit is from National's Linear Applications Handbook, but can be implemented with other transistors, depending on the power and also with other operational ones. The power supply must be symmetrical.
