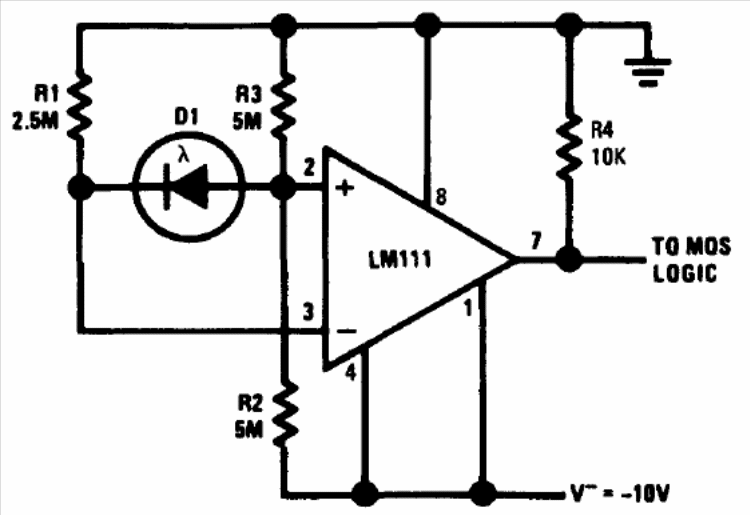

Photodiode Amplifier (CB14156E)

Details
Written by: Newton C. Braga



We found this configuration with CMOS-compatible output in the 1994 National Semiconductor Linear Applications Handbook. Equivalent operational amplifiers can be used, and the source need not be symmetrical.
