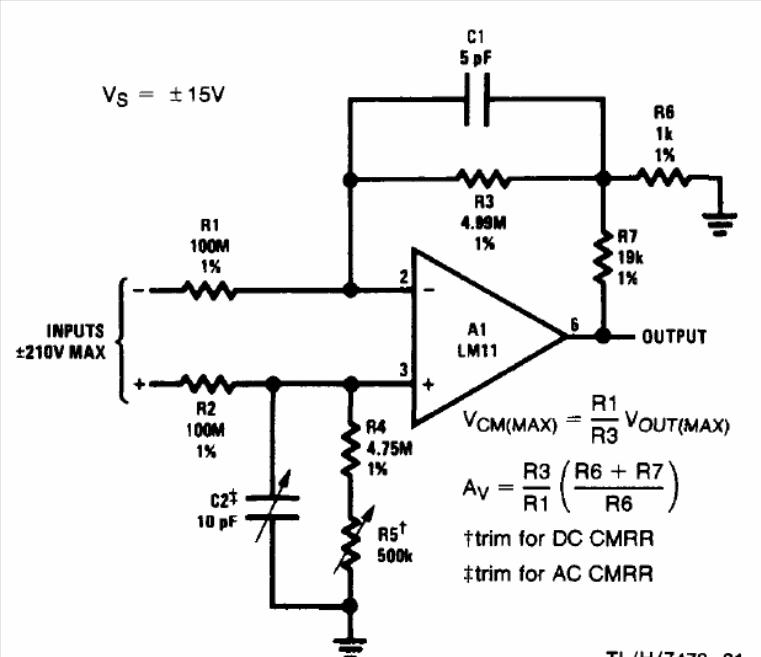

We found this circuit in a technical documentation from the National Semiconductor of 1994. The LM11 is uncommon today, but the circuit can be implemented with modern equivalents that have the same characteristics.
| Clique na imagem para ampliar |
High Input Voltage Differential Amplifier (CB14345E)
- Details
- Written by: Newton C. Braga
