Bistable with the LM3900 (CB14202E)

Details
Written by: Newton C. Braga

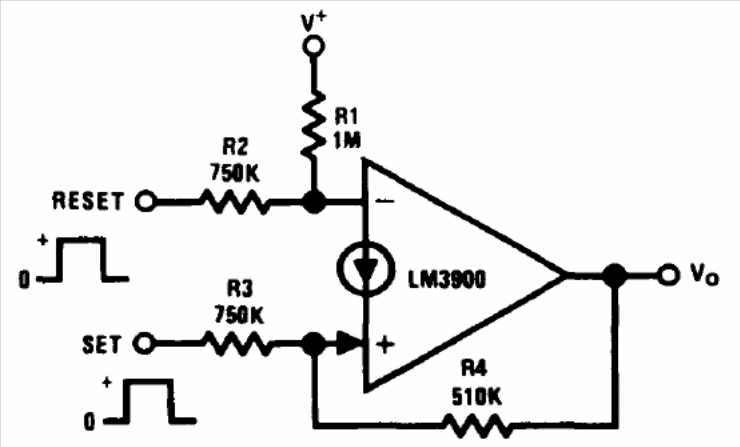

We found this circuit in the National Semiconductor's Linear Applications Handbook of 1994. The circuit uses an operational transconductance amplifier.
