PUT with the LM3900 (CB14226E)

Details
Written by: Newton C. Braga

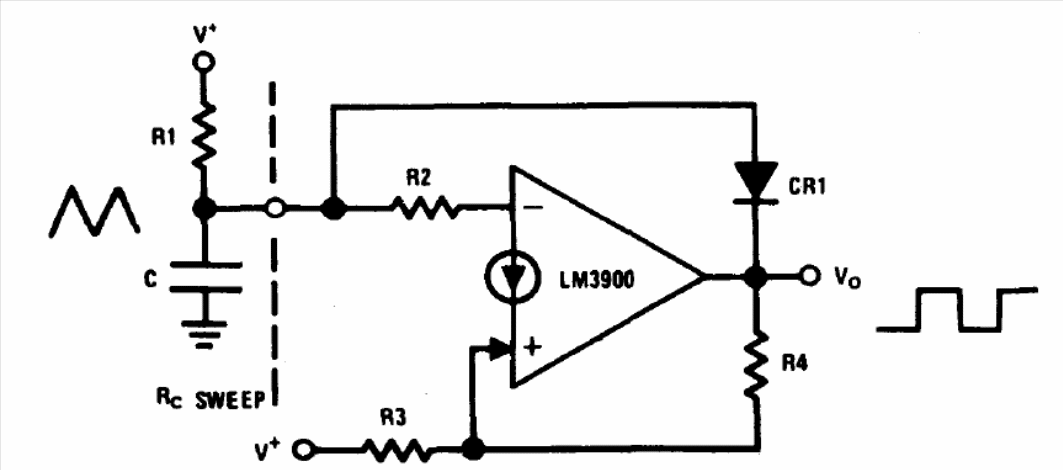

In the figure we have the way of using a transconductance amplifier (OTA), LM3900 as a simulated Programmable Unijunction Transistor (PUT). The circuit is from the 1994 Linear Applications Handbook by National Semiconductor.
