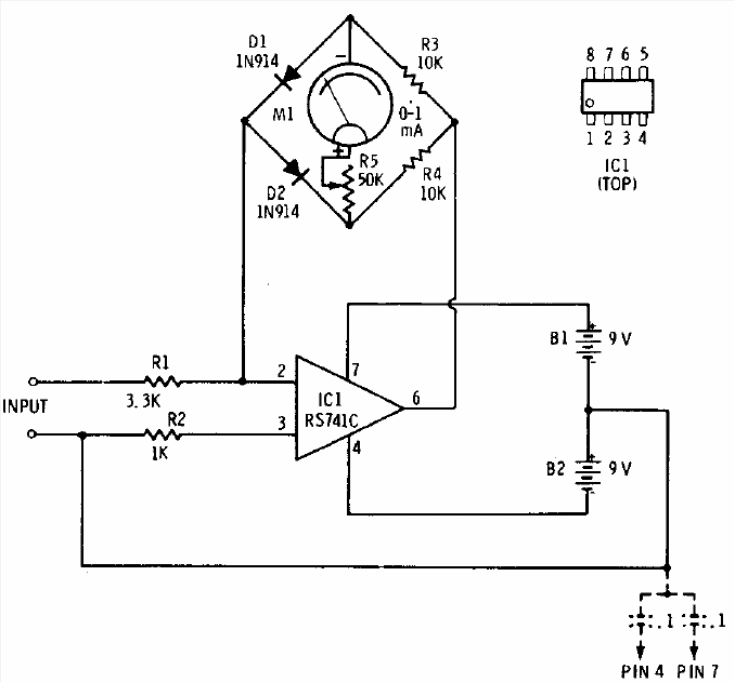

This circuit of very high input resistance was found in a Radio Shack documentation from 1977. The circuit is powered by a symmetrical source and other operational ones can be used. The instrument may also have other scale funds with an R5 change.
| Clique na imagem para ampliar |
