This circuit was found in an American magazine in 1976. It doubles the frequency of TTL signals in the indicated range. The circuit must be powered by 5 V and the component values depend on the frequency.
| Clique na imagem para ampliar |

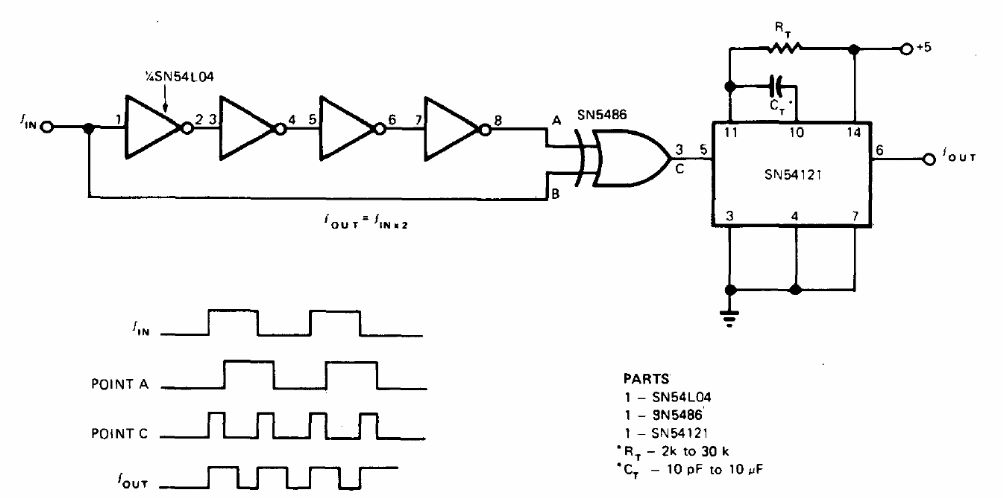

1 Hz to 12 Frequency Doubler (CB13739E)
