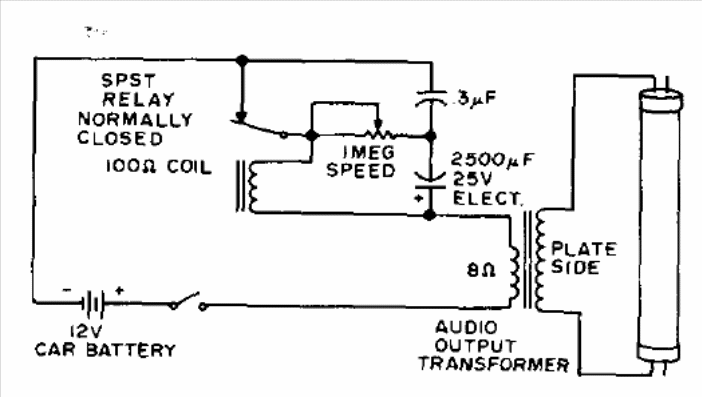

This circuit causes a relay to oscillate generating a signal that turns into high voltage in a small 110 V or 220 V x 12 V x 200 to 500 mA power transformer. High voltage serves to light a fluorescent lamp. The circuit is from a 1975 documentation.
