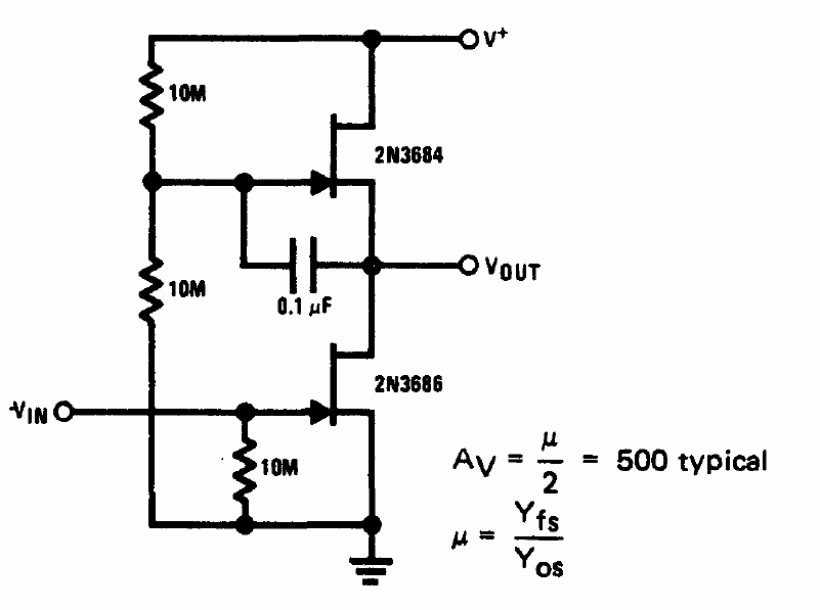

In the figure we have the way to obtain 500 gain from a FET. FETs can be BF245 or MPF102. The circuit is from the 1977 National Semiconductor FET Data Book. Power supply depends on the application.
| Clique na imagem para ampliar |
High Gain FET (CB13680E)
- Details
- Written by: Newton C. Braga
