Frequency Doubler (CB13738E)

Details
Written by: Newton C. Braga

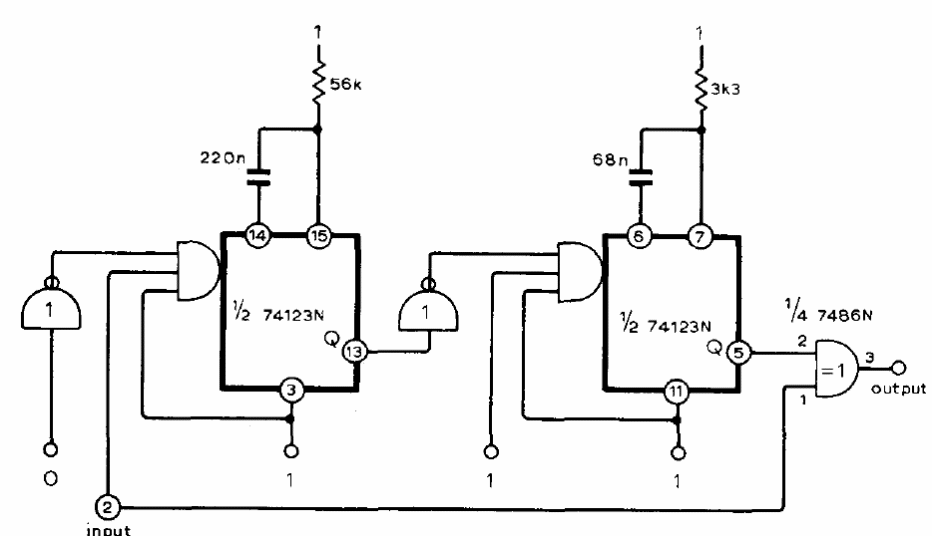

This circuit, obtained from old documentation, doubles the frequency of the pulses applied to the input. The circuit must be powered by a voltage of 5 V.




| Clique na imagem para ampliar |
