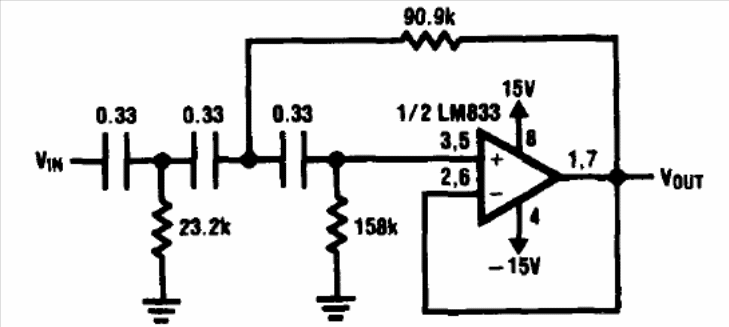

This circuit is used to block infrasonic signals in sound systems. The LM833 operating system is not common today, but more modern equivalents can be used. The circuit is from the 1994 National Semiconductor Linear applications Handbook.
