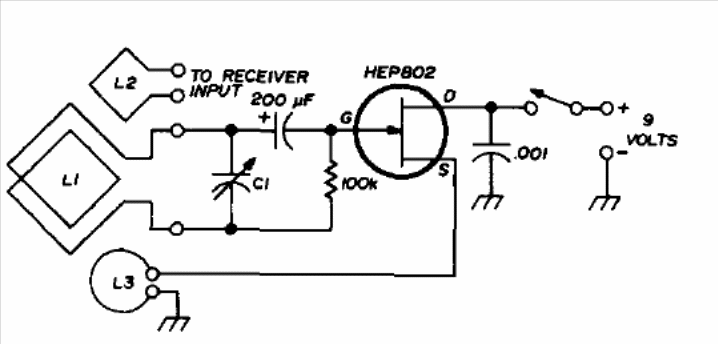

Loop Antenna Q Multiplier (CB13648E)

Details: Written by: Newton C. Braga

I found this circuit in a documentation for radio amateurs from 1975. The FET could be the BF245. The circuit works in the range of 40, 80 and 160 meters of radio amateurs.
