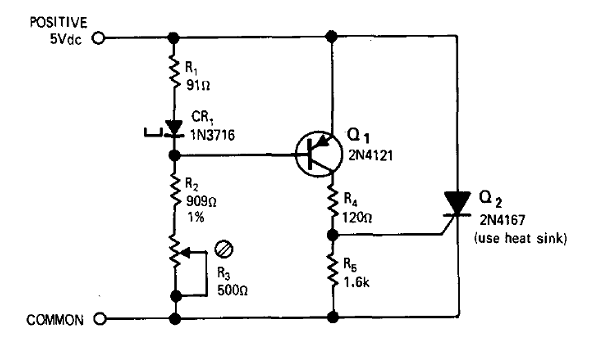

This circuit triggers by burning an input fuse when the monitored voltage exceeds 5 V. The SCR admits equivalents and the transistor can be the BC558. The circuit is from American documentation from the 70s.
5 V Crowbar (CB13919E)
- Details
- Written by: Newton C. Braga
