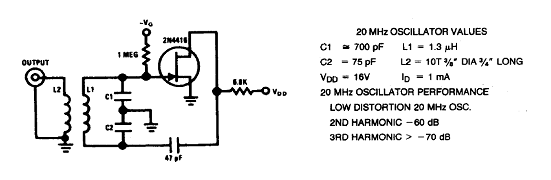

This stable 20 MHz oscillator was suggested by the National Semiconductor's Linear Applications Handbook from 1994. The FET can be of a common type like the BF245. Details of the components, mainly the coil are given on the side.
20 MHz Oscillator (CB14153E)
- Details
- Written by: Newton C. Braga
