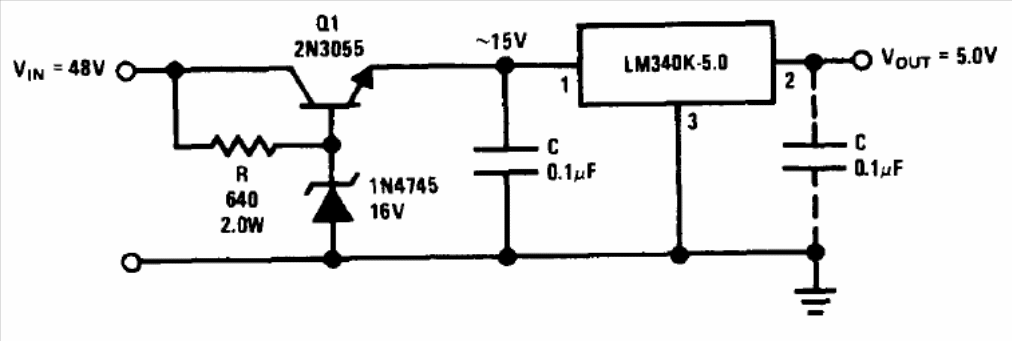

The circuit shown uses the LM340 but applies to other regulators. We found this setting in National's Linear Applications Handbook. The maximum current is 5 A and the transistor, as well as the integrated, must be equipped with heat radiators.
