12 W Amplifier (CB13679E)

Details
Written by: Newton C. Braga

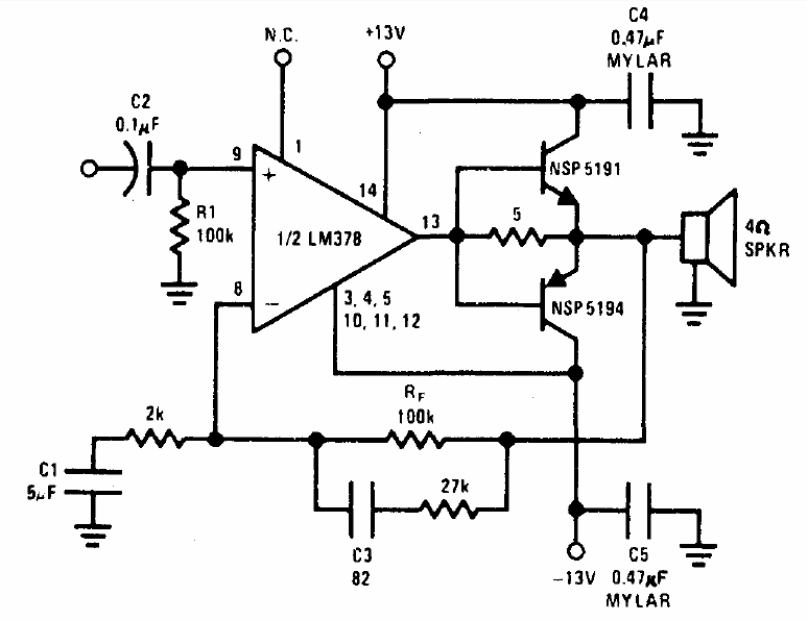

The integrated circuit of this amplifier is not very common today. The output transistors can be TIP31 and TIP32 in heat radiators. The circuit is from the 1977 National Semiconductor Audio Handbook.




| Clique na imagem para ampliar |
