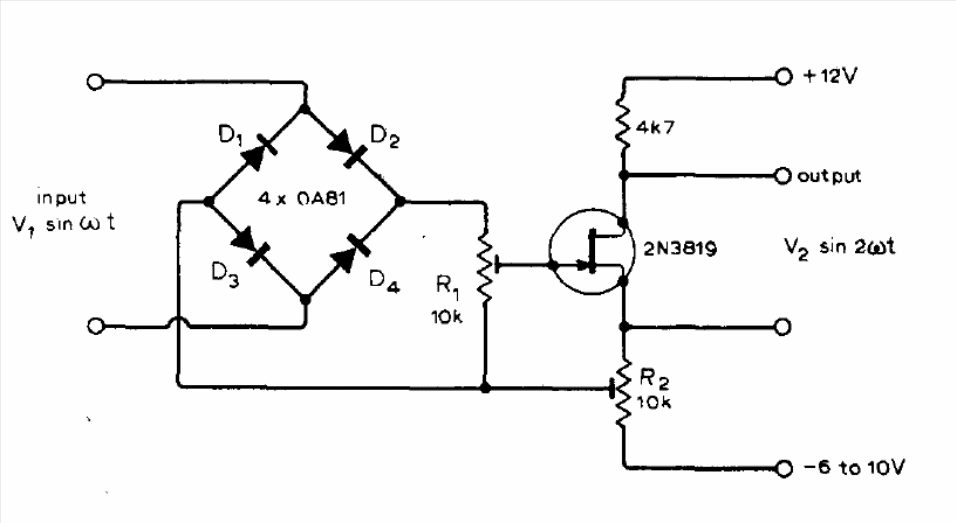

Frequency Doubler (CB13736E)

Details
Written by: Newton C. Braga



This circuit was obtained in a 1975 documentation. The maximum frequency depends on the diodes and the FET. Type 1N34 diodes and a FET BF245 can be used for frequencies up to 100 MHz.
