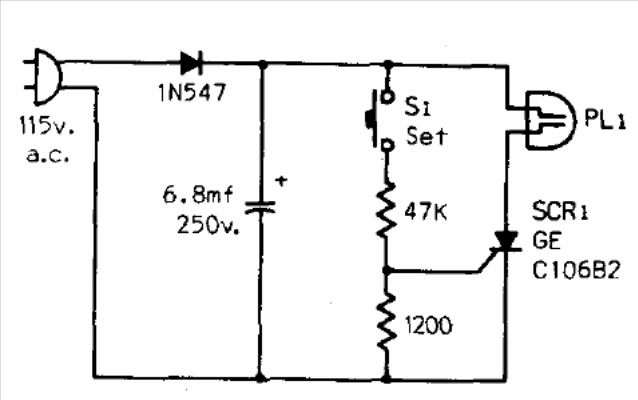

This circuit powers a small 5 W lamp that goes out when power is lost. The circuit can use the TIC106 and the source diode can be 1N4004 for the 110 V network and 1N4007 for the 220 V network.
Power Grid Voltage Monitor (CB13917E)
- Details
- Written by: Newton C. Braga
