Current Regulator up to 3 A LM150 (CB14514E)

Details: Written by: Newton C. Braga

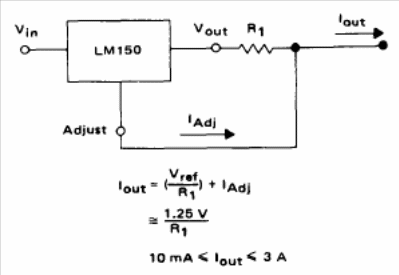

The LM150, 250 and 350 series are manufactured by several semiconductor industries that suggest applications in their manuals and datasheets. The circuit below is from the Motorola Linear Databook of 1990 and can supply currents up to 3 A.
