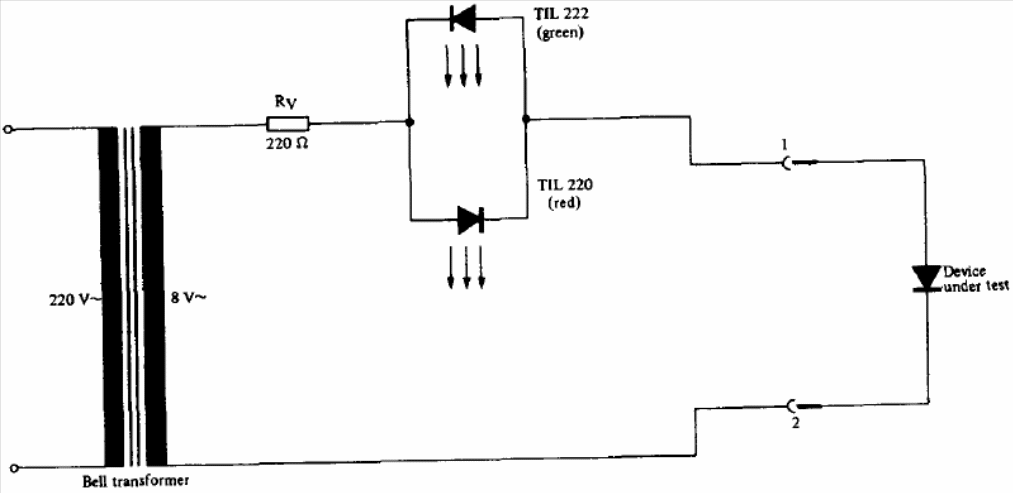

This LED diode test is suggested by the Texas Instruments optoelectronics manual. The transformer current can be between 50 mA and 300 mA and the voltage between 6 and 9 V.
| Clique na imagem para ampliar |
Simple Diodes Test (CB14700E)
- Details
- Written by: Newton C. Braga
