12 V Assisted Ignition (CB14814E)

Details
Written by: Newton C. Braga

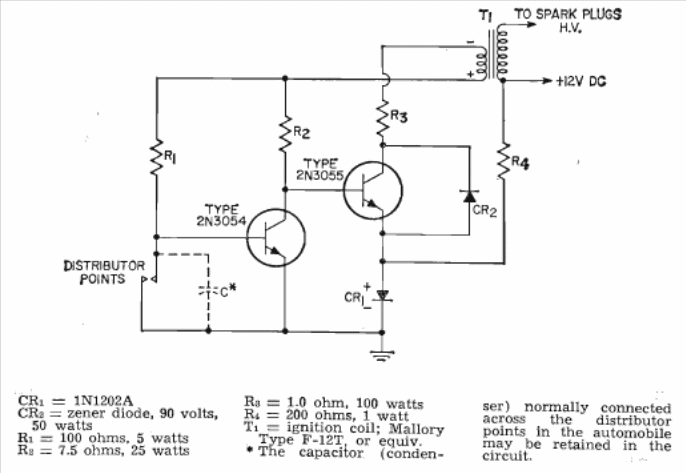

We found this 12 V ignition circuit in the 1964 RCA transistor manual. The 2N3054 can be replaced by the TIP41C. The two transistors must be provided with heat sinks.
