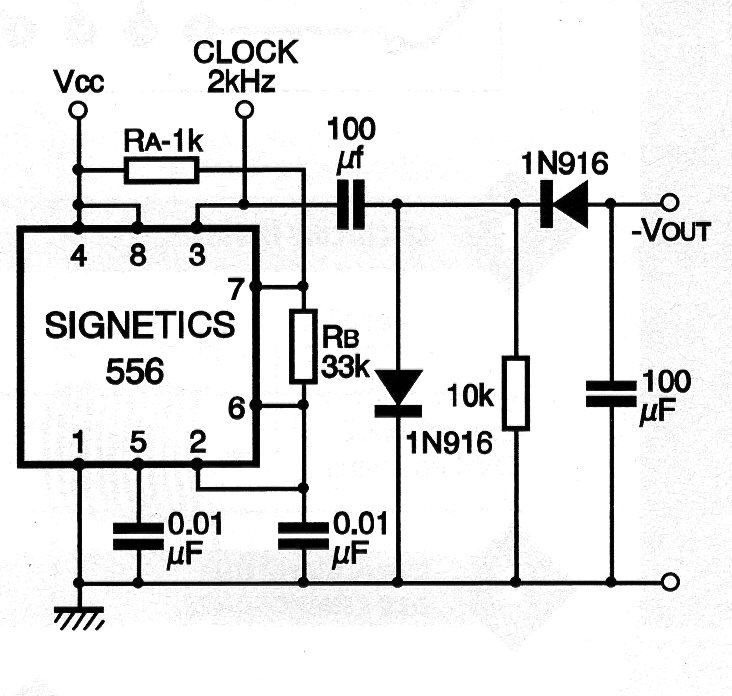

This circuit doubles the input voltage, converting, for example, 6 V and 12 V. The output current is very low, and the frequency depends on the 0.01 uF capacitor. The circuit uses a double 555 which is 556. We found this circuit in Signetics documentation.
