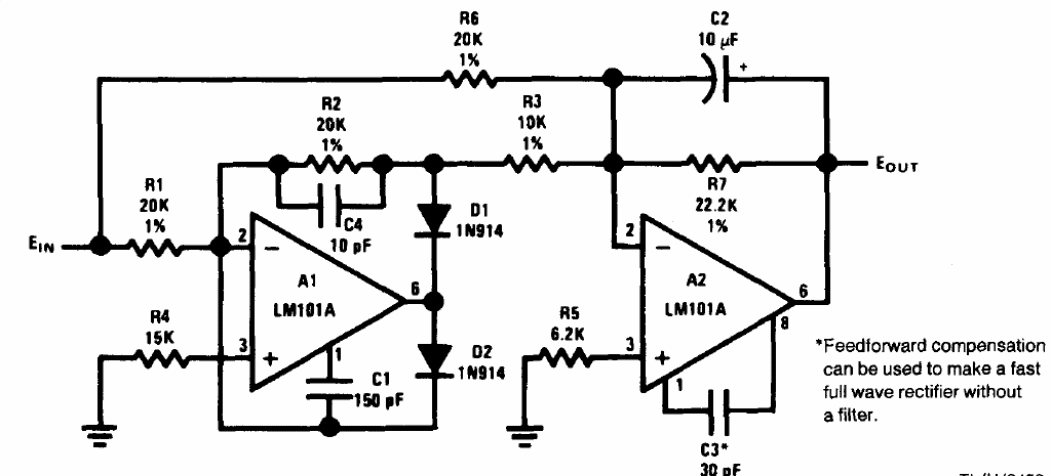

The circuit shown is from 1994 National Semiconductor documentation but can be implemented with more modern operational amplifiers. The power supply must be symmetrical.
| Clique na imagem para ampliar |
Precision AC to DC Converter (CB14422E)
- Details
- Written by: Newton C. Braga
