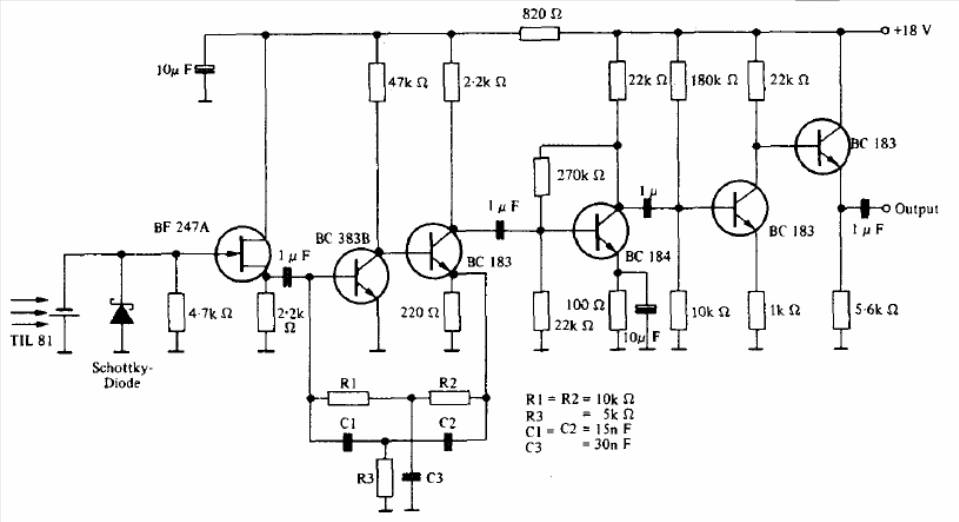

This circuit selects a signal at a frequency determined by the double T. The NPN transistors can be BC548 and FET or BF245. The circuit is from the Texas Instruments opto-electronics manual.
| Clique na imagem para ampliar |
Active Filter Photo Detector (CB14697E)
- Details
- Written by: Newton C. Braga
