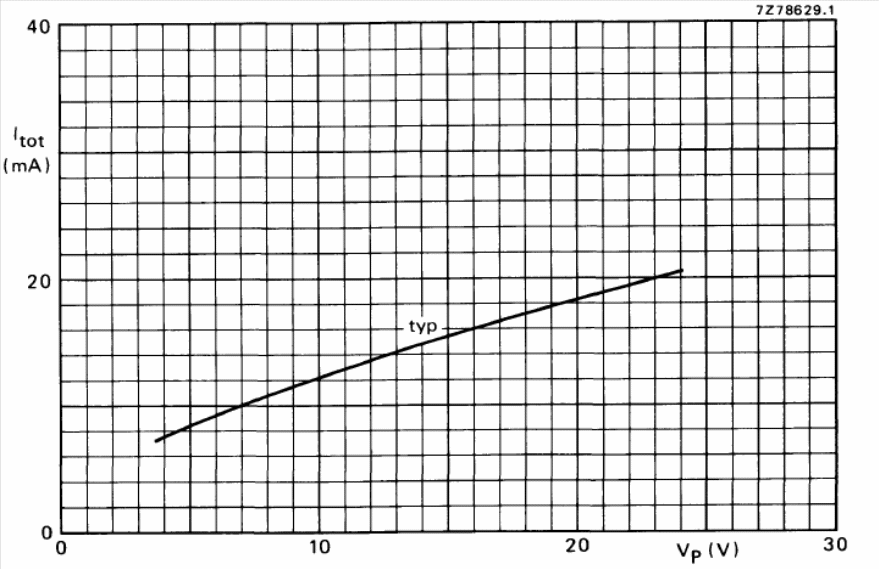

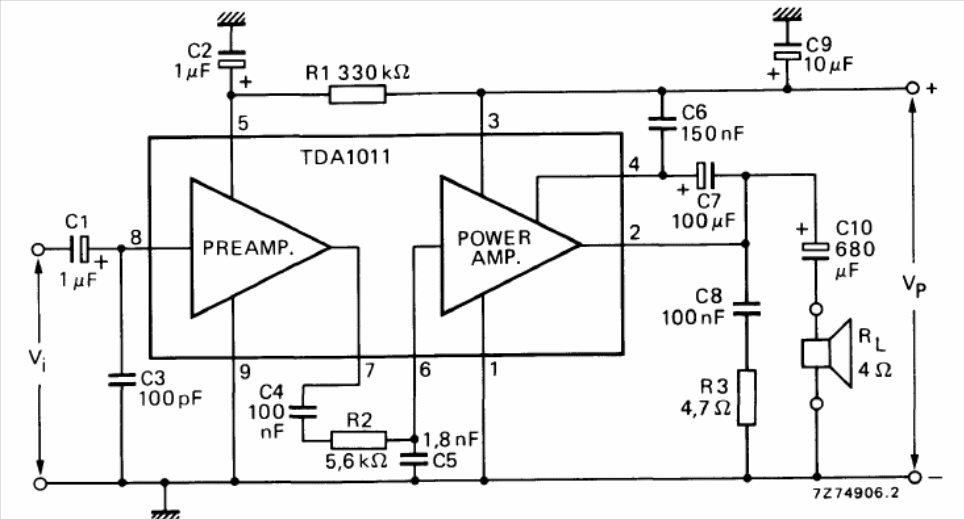

This circuit was found in the Philips integrated circuits manual of 1990. The integrated circuit must have a heat radiator and the power depends on the supply voltage.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
10 W amplifier TDA1011 (CB14723E)
