1W Germanium Transistors Audio Output Stage (CB14757E)

Details
Written by: Newton C. Braga

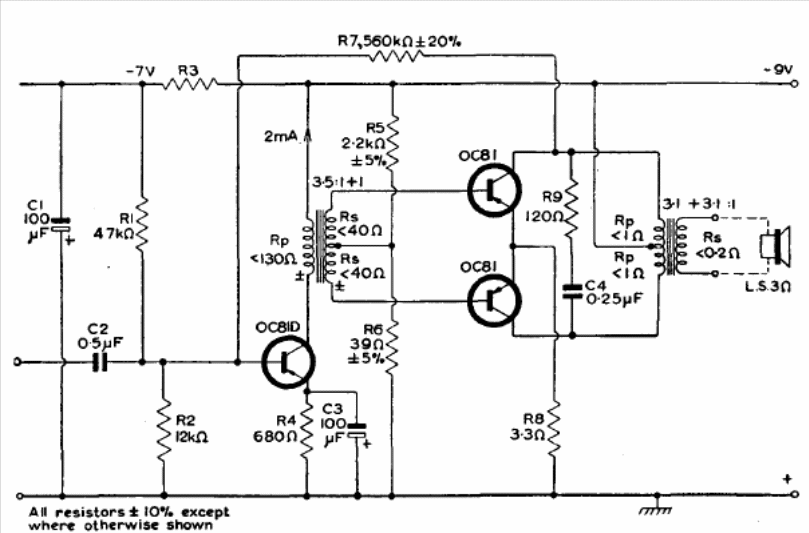

This class B circuit was found in the 1960 Mullard transistor reference manual. Transformers are the critical components. The source is not symmetric.




| Clique na imagem para ampliar |
