Tunable Notch Filter (CB14923E)

Details
Written by: Newton C. Braga

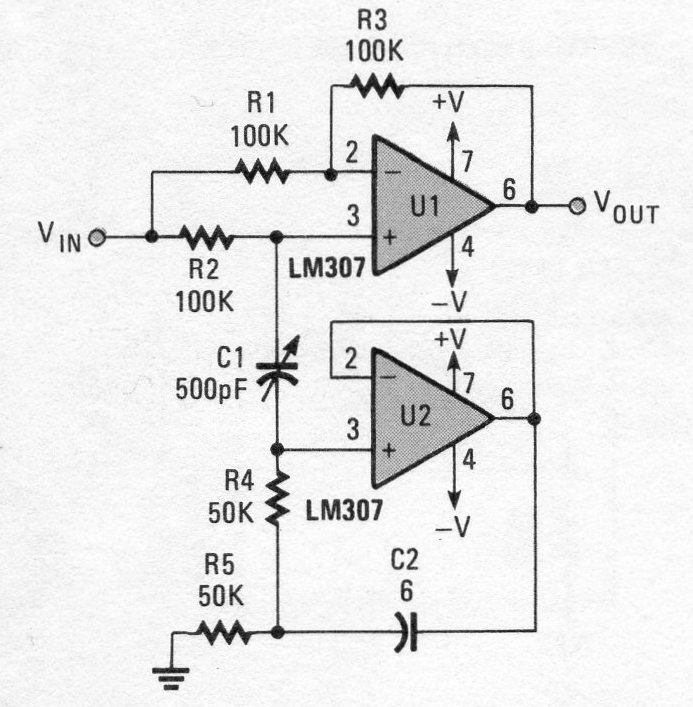

This circuit rejects frequencies around 1 kHz and can be adjusted using C1. Equivalent operational amplifiers can be used, and the power supply must be symmetrical.
