Operational Fast Wave Rectifier (CB14421E)

Details
Written by: Newton C. Braga

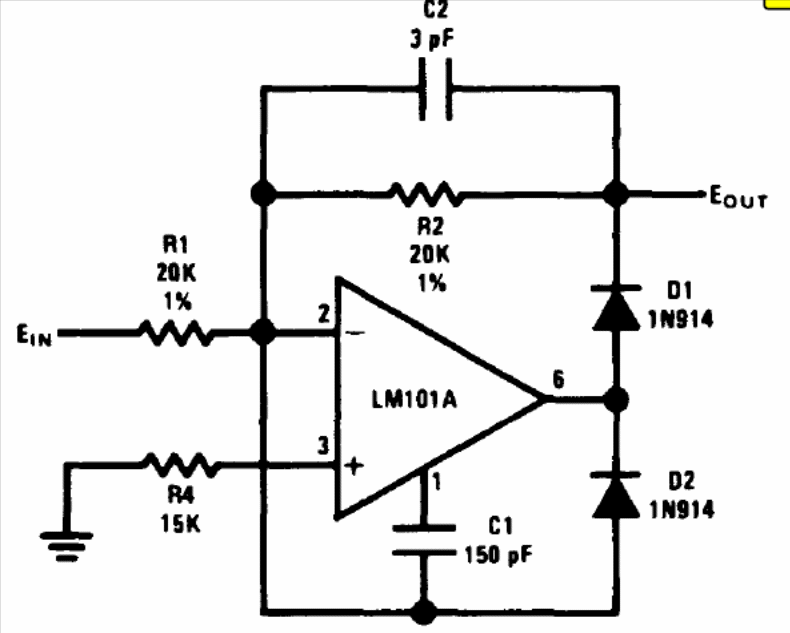

The circuit is from the 1994 National Semiconductor Linear Applications Handbook but can be implemented with more modern operational amplifiers. The power supply must be symmetrical.




| Clique na imagem para ampliar |
