Bidirectional switch LTC1134 (CB14611E)

Details
Written by: Newton C. Braga

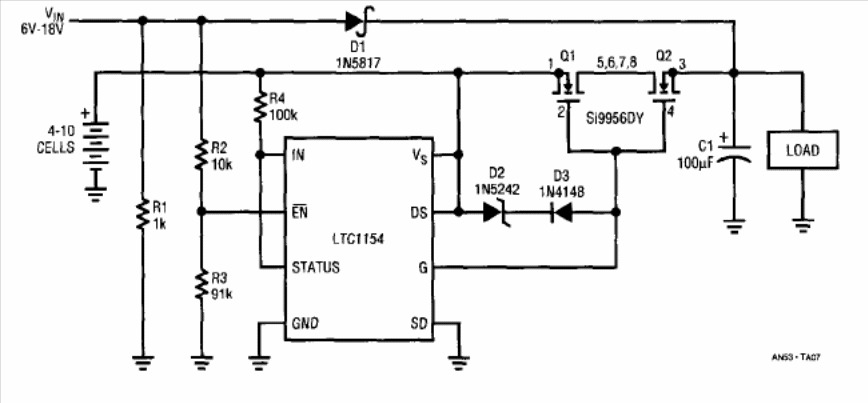

This circuit uses opposing MOSFETs operating on a 6 to 15 V input voltage. The circuit is from 1997 Linear Technology Applications and uses common components at the time.




| Clique na imagem para ampliar |
