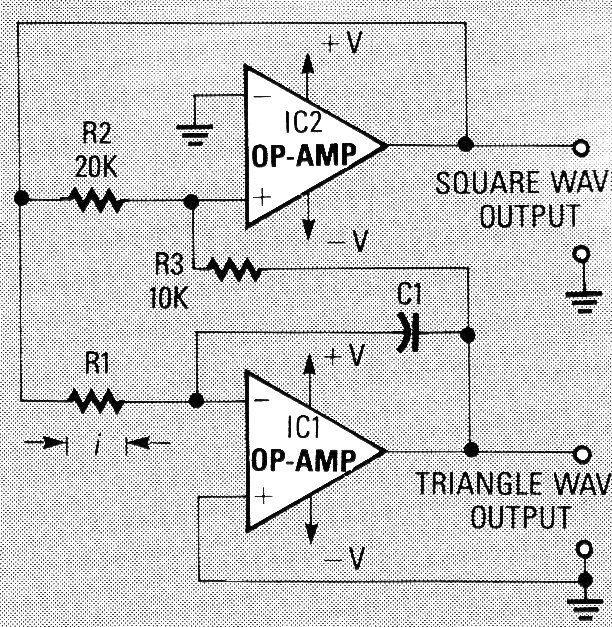

In the figure we have the basic configuration of a function generator with two operational ones, which can be of type 741. The frequency depends on R1 and C1 and the power supply must be symmetrical.
Basic Function Generator (CB15022E)
- Details
- Written by: Newton C. Braga
