Operational Precision Clamp Circuit (CB14420E)

Details
Written by: Newton C. Braga

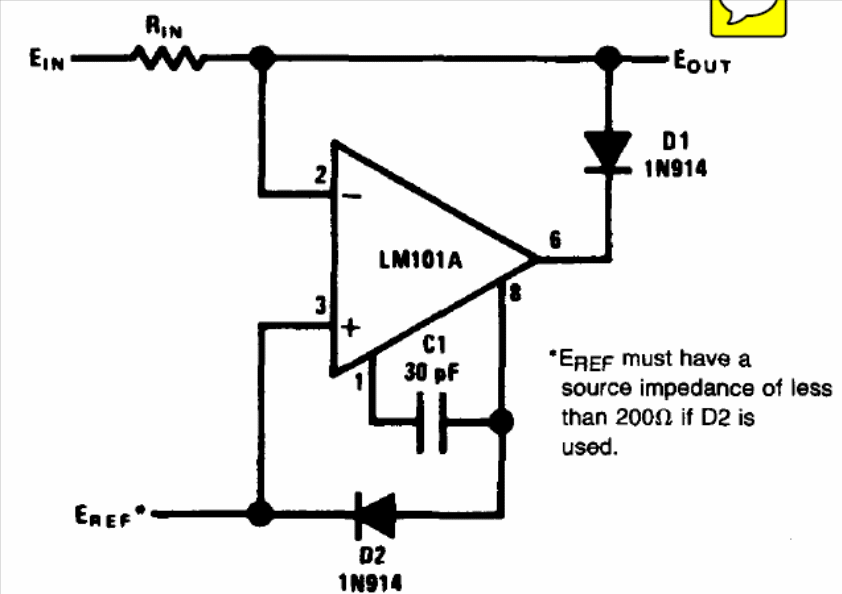

The circuit shown is from a 1994 National Semiconductor documentation and can be implemented with more modern operational amplifiers. The power supply must be symmetrical.
