1960 mW Audio Output Stage (CB14755E)

Details
Written by: Newton C. Braga

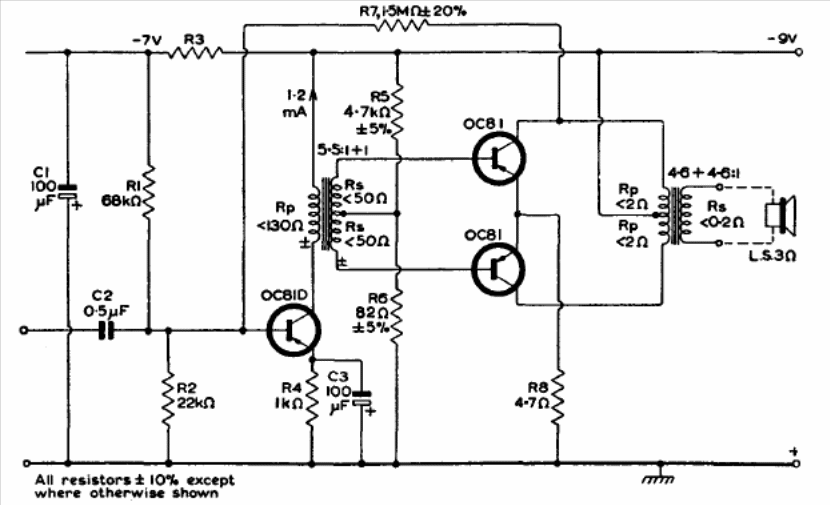

This old amplifying stage was found in radios and small amplifiers of the time. The circuit is from Mullard's transistor reference manual.
