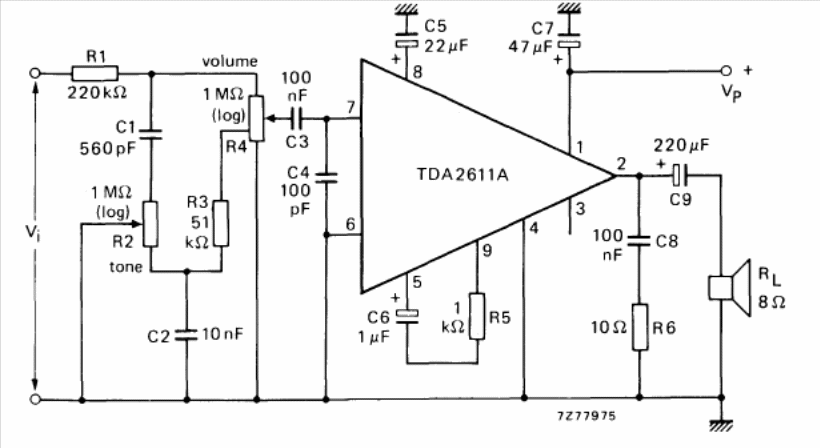

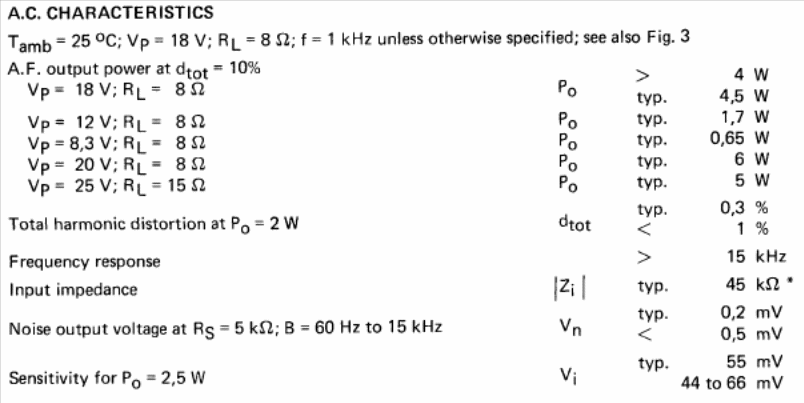

We found this circuit in the Philips Databook of 1990. The circuit is indicated for low-cost applications in equipment with power supply from 6 to 35 V. In the table below we have the circuit characteristics.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
