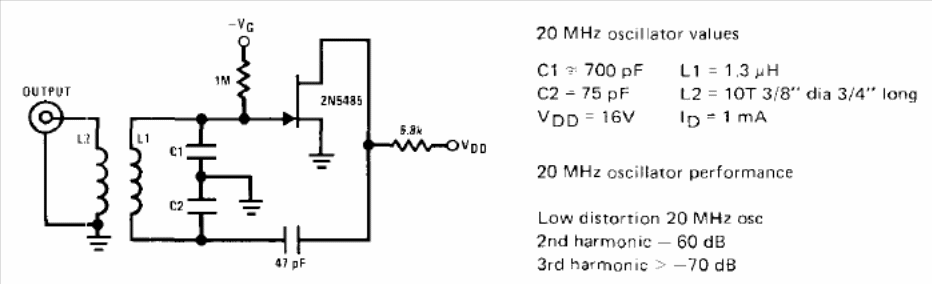

With the components indicated, the circuit oscillates at 20 MHz. The coils and capacitors can be changed to generate signals of other frequencies. The circuit is from National Semiconductor's JFET Databook.
| Clique na imagem para ampliar |
Low Distortion Oscillator (CB14622E)
- Details
- Written by: Newton C. Braga
