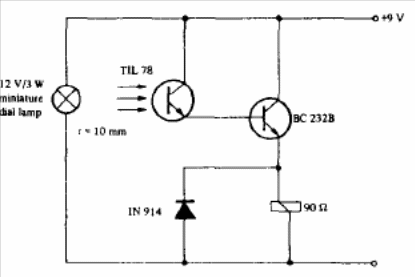

The recommended distance between the emitter and the phototransistor is 10 mm for this configuration. The circuit is suggested by the Texas Instruments opto-electronics manual. The relay must be according to the circuit supply.
10mm Optocoupler (CB14665E)
- Details
- Written by: Newton C. Braga
