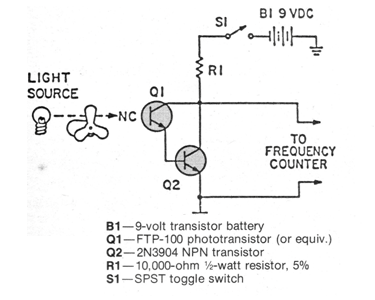

This circuit was found in an American publication from the 1980s. The circuit generates pulses from light and shadow, which can be used in a tachometer circuit. The phototransistor can be of any type as well as Q2.
Tachometer Adapter (CB15042E)
- Details
- Written by: Newton C. Braga
