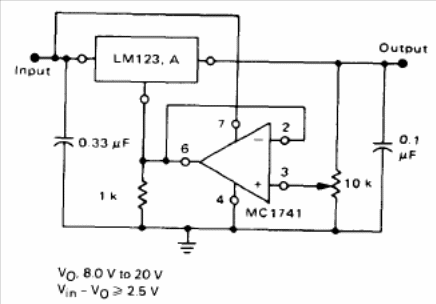

The LM123 series (223 and 333) is manufactured by several semiconductor companies. The circuit below uses the 741 and provides up to 3 A of output. The circuit is from the Motorola's 1990 Linear Databook.
3A Adjustable Regulator LM123 (CB14509E)
- Details
- Written by: Newton C. Braga
