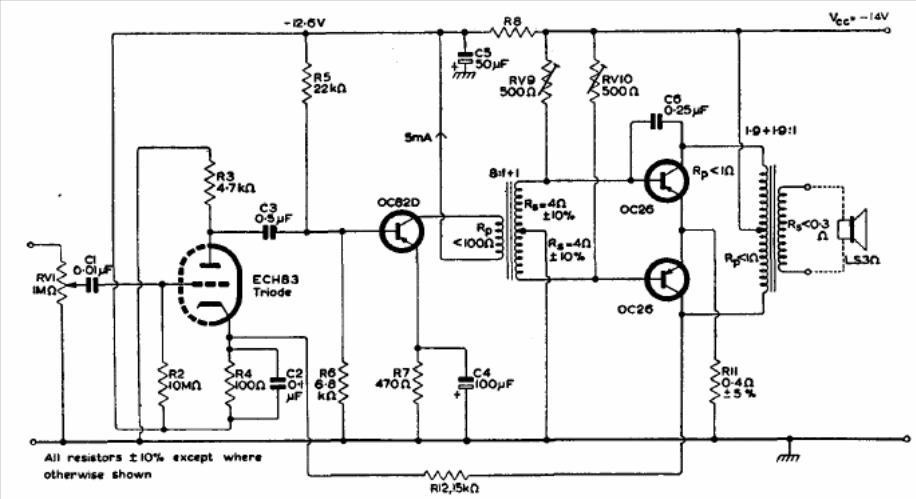

This 7 W hybrid circuit with push-pull stage is from the Mullard transistors reference manual from 1960. The circuit was found in car radios of the time that still used tubes in the other stages.
| Clique na imagem para ampliar |
7 W Car Audio Output Stage (CB14754E)
