We found this limiter (clipper) in a French documentation from 1982. The circuit applies to any operational amplifier and the power supply must be symmetrical. The voltage can be between 3 and 12 V typically, depending on the amplifier used.

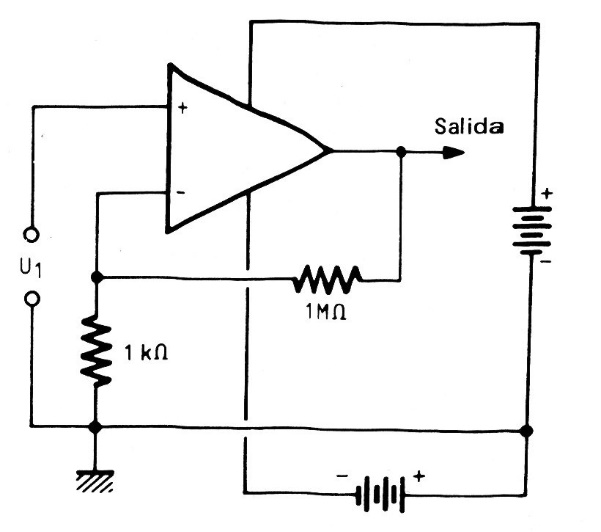

Non-Inverting Amplitude Limiter (CB14833E)
