Simulated Inductor (CB14920E)

Details
Written by: Newton C. Braga

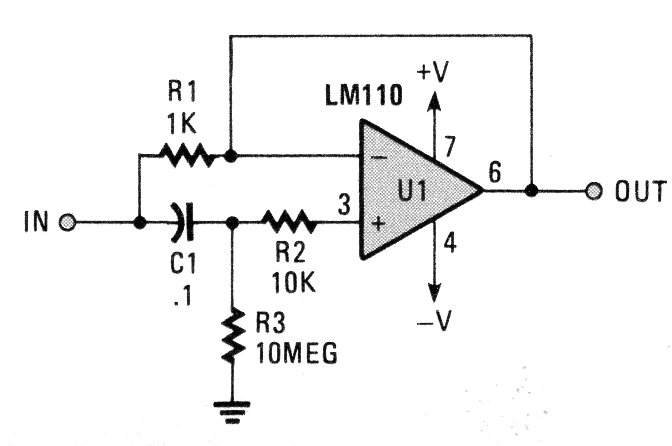

This circuit simulates the effect of an inductance. Equivalent operational amplifiers can be used, and the power supply must be symmetrical. The circuit is from a 90's Poptronics.
