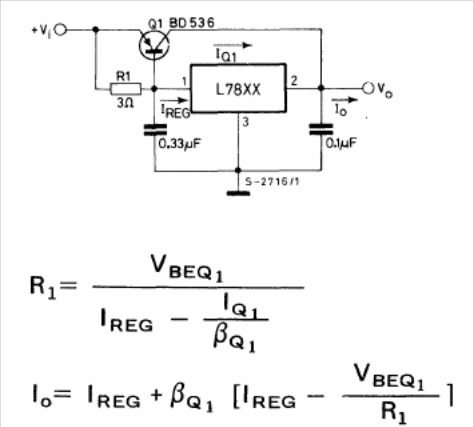

This circuit was found in the SGS manual of linear integrated circuits of 1982. The L78xx is equivalent to the well-known 78xx and the transistor admits equivalent according to the output current. The formulas below the diagram make it possible to calculate the components according to the output current.
