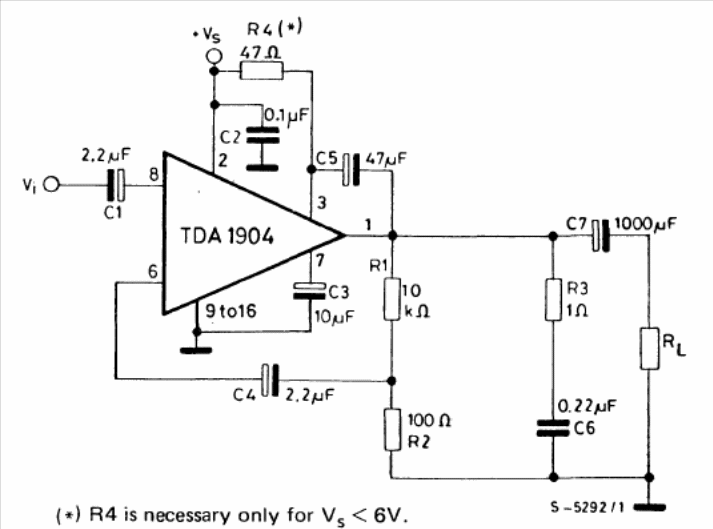

The supply voltage range of this circuit ranges from 4 to 20 V and the power depends on the chosen value and the load impedance. The gain is 40 dB, and the suggested load is 4 ohms. The circuit is from the 1982 SGS linear integrated circuit manual. The integrated circuit used is not common today.
| Clique na imagem para ampliar |
