24 W BTL Amplifier TDA2006 (CB15244E)

Details
Written by: Newton C. Braga

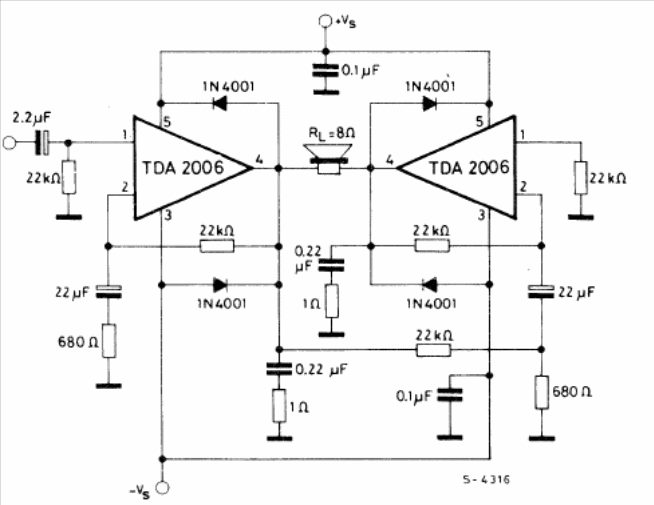

The power supply for this circuit must be symmetrical at 12 + 12 V and the load must be 8 ohms. The circuit is from the 1982 SGS Linear Integrated Circuits Manual.




| Clique na imagem para ampliar |
