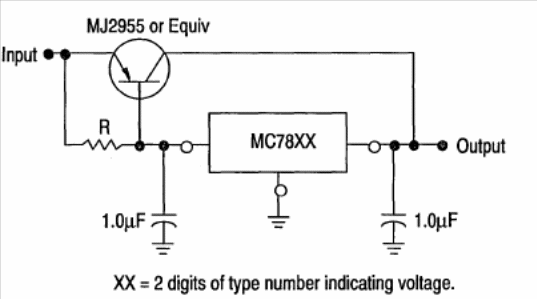

We found this circuit on Motorola's Linear Interface ICs. The components are current, and the transistor must have a good heat radiator as well as the CI. The xx indicates the voltage of the integrated circuit.
5 A booster for the 78xx (CB15336E)
- Details
- Written by: Newton C. Braga
