The supply of this circuit can be done with voltages from 8 to 28 V and the maximum output current is 3 A. The gain is 36 dB. The speaker impedance is 4 ohms.
| Clique na imagem para ampliar |

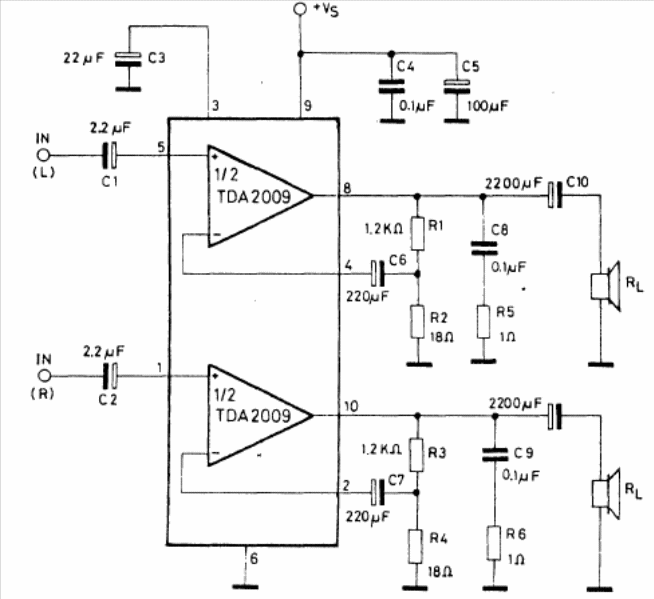

10 + 10 W amplifier TDA2009 (CB15246E)
- Details
- Written by: Newton C. Braga
