Instrumentation Amplifier (CB14777E)

Details
Written by: Newton C. Braga

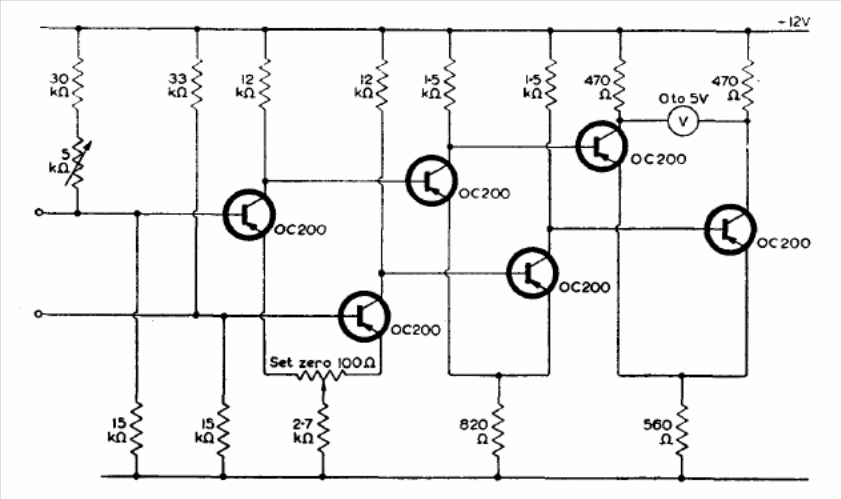

This circuit with germanium transistors is from 1960 and was found in Mullard's transistor application manual from 1960. The circuit can be adapted to use more modern transistors.




| Clique na imagem para ampliar |
