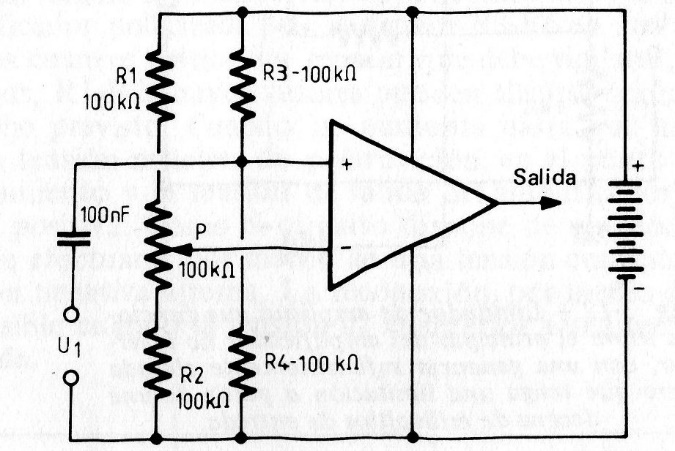

This circuit limits (clip) the intensity of a signal, according to the setting of P. The circuit is from a French documentation from 1982 and can be applied to any operational amplifier. The power supply does not have to be symmetrical.
