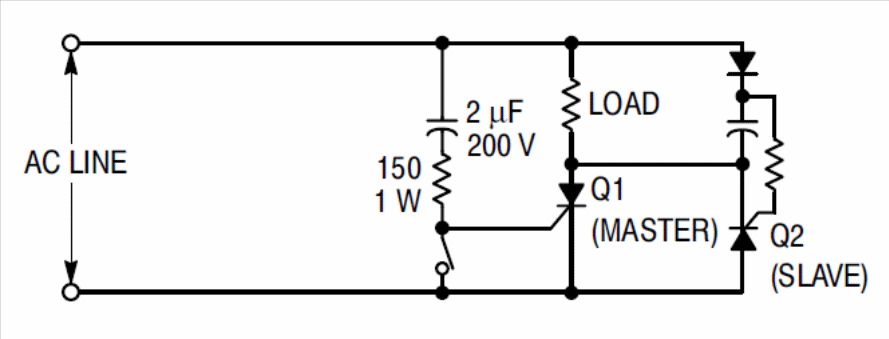

The idea of this circuit is to obtain control of a load with two SCRs in full wave, but with only one trip circuit. When one of the SCRs turns off the other one automatically turns on the opposite semi cycle. The current of the SCR must be according to the load.
