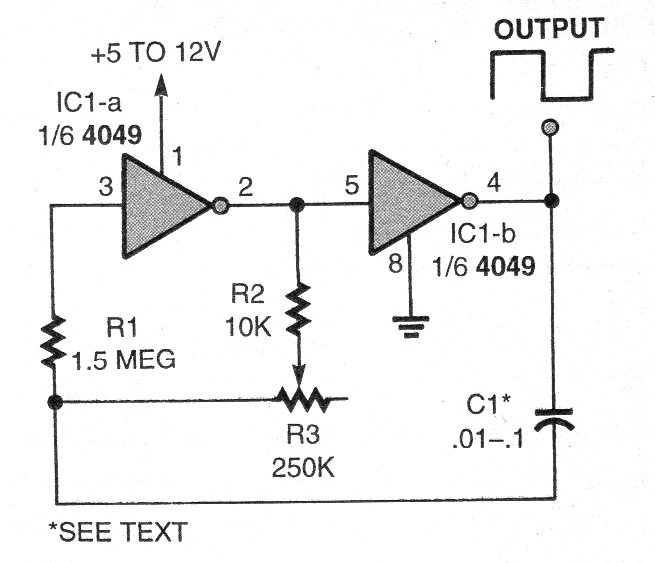

This traditional rectangular oscillator configuration generates signals up to a few megahertz depending on the capacitor. The circuit can be powered by voltages from 5 to 12 V. We found the circuit in a publication from the 90s.
